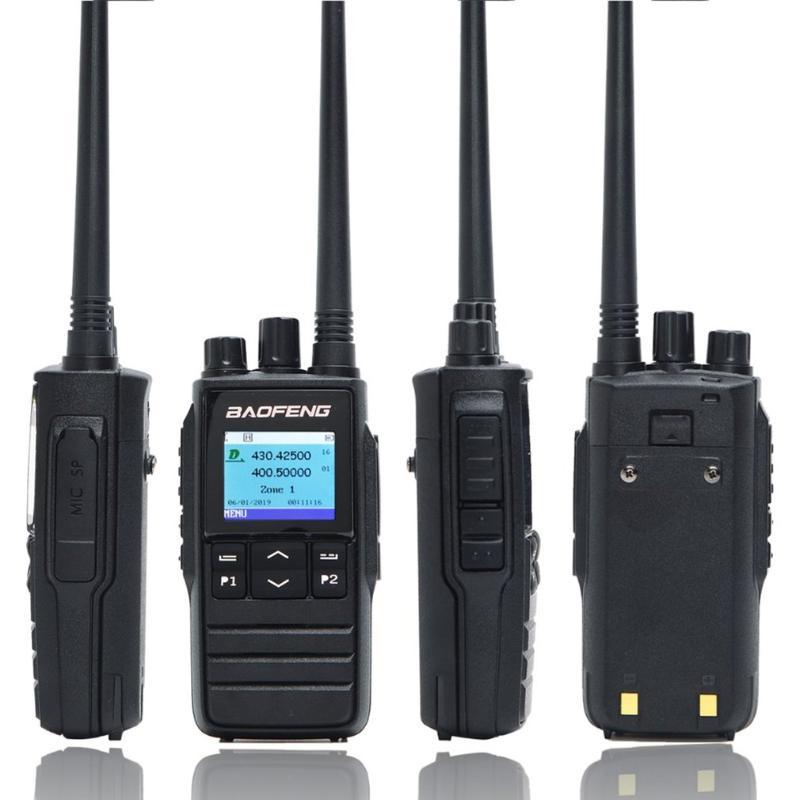

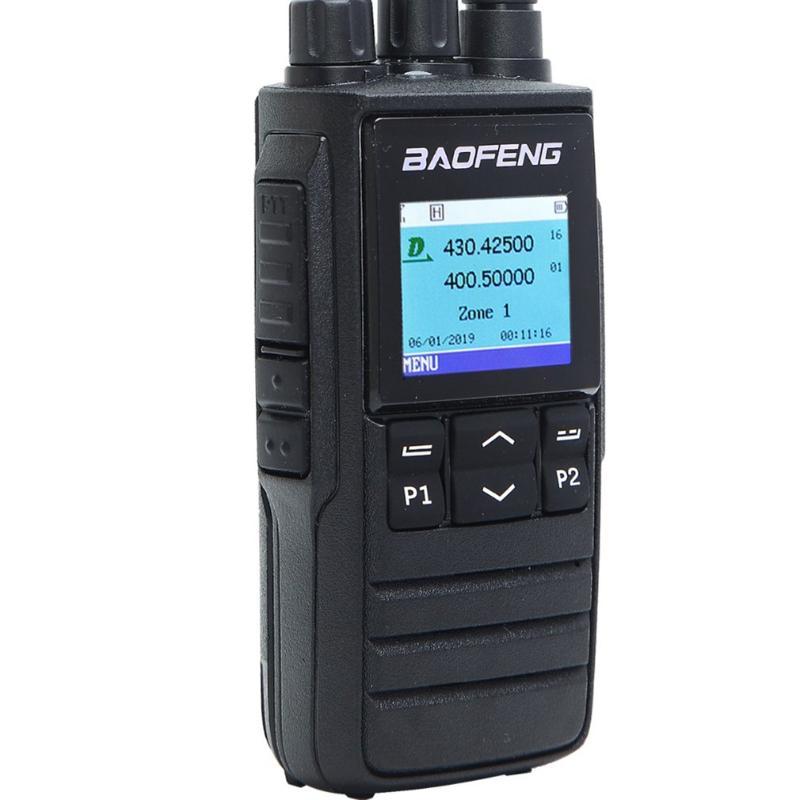

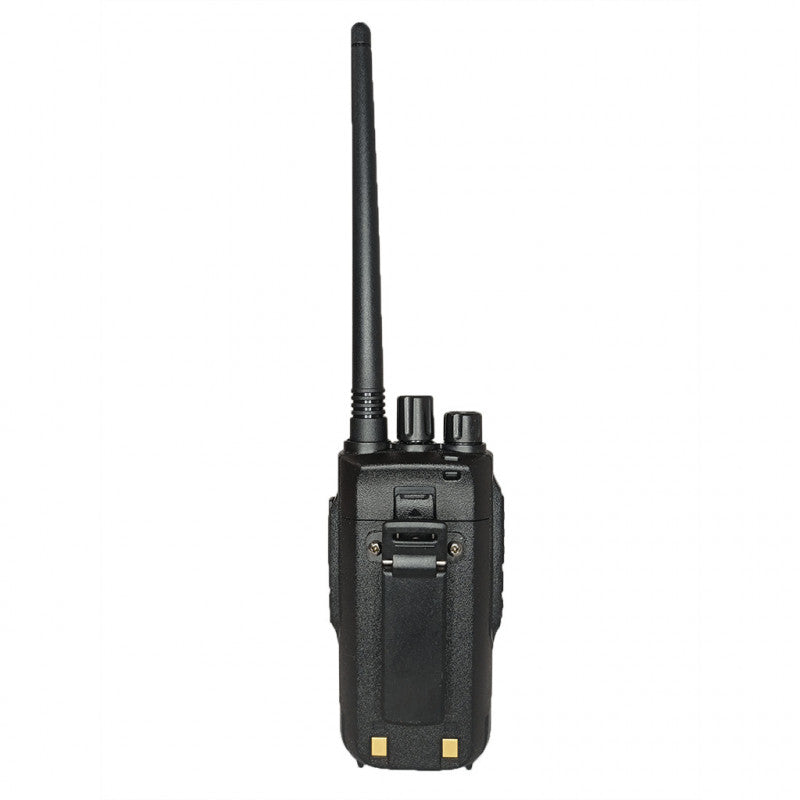

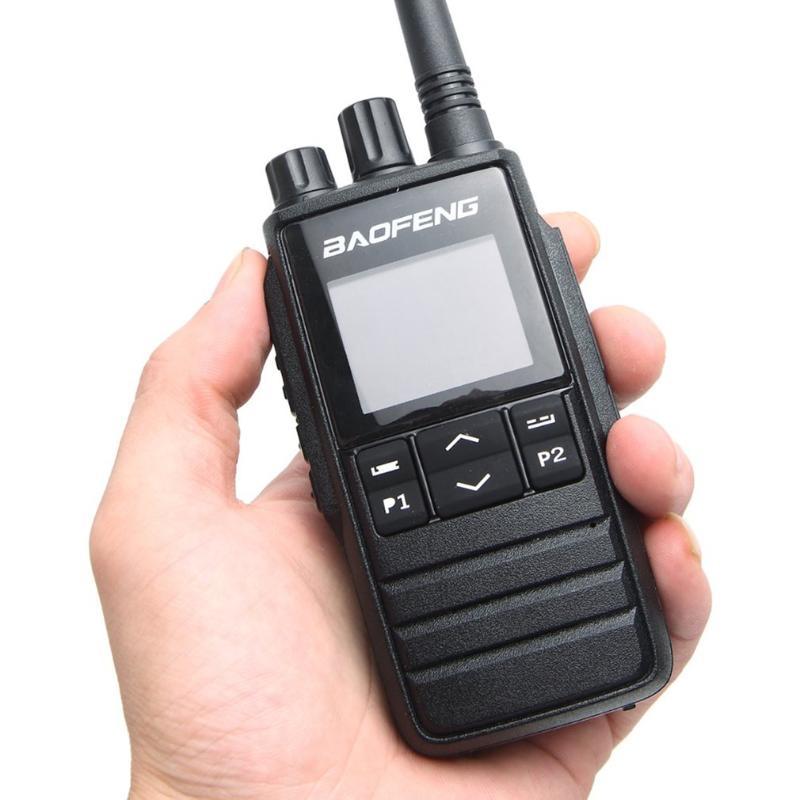

Baofeng DM-1703 Dual Band Dual Time Slot DMR Digital/Analog Tow Way Radio VHF/UHF MHz 1024 Channels Ham Radio


Price:
Sale priceC$125.99

Description

Features:

1. Compatible with MOTOTRBO Hytera Tier II Radio and its repeater perfectly
2. Dual Band VHF 137-174MHz & UHF 400-470MHz
3. Dual Knob: Power/Votume Knob, Channel Knob
4. Analogue & Digital Mode
5. 1024 Storage Channel
6. Dual Time Slot, Tier I &II
7. Group Call/Private call
8. Dual Display
9. VOX Function
10. Frequency Step:2.5/5/6.25/10/12.5/20/25/k
11. Scan
12. 16 groups color code seletable
13. 2200mAh 7.4V 16.28Wh High Capacity Li-ion battery Pack
14. SMS message
15. Support manually programming and PC programming
16. High/Medium/Low Power seletable
17. Frequency/Channel Mode Selectable


Specifications:

General
Frequency Range VHF:136-174MHz, UHF:400-470MHz (Dual Band)
Memory Channel 1024
Operating Voltage DC 7.4V
Frequency stability ±1.0ppm

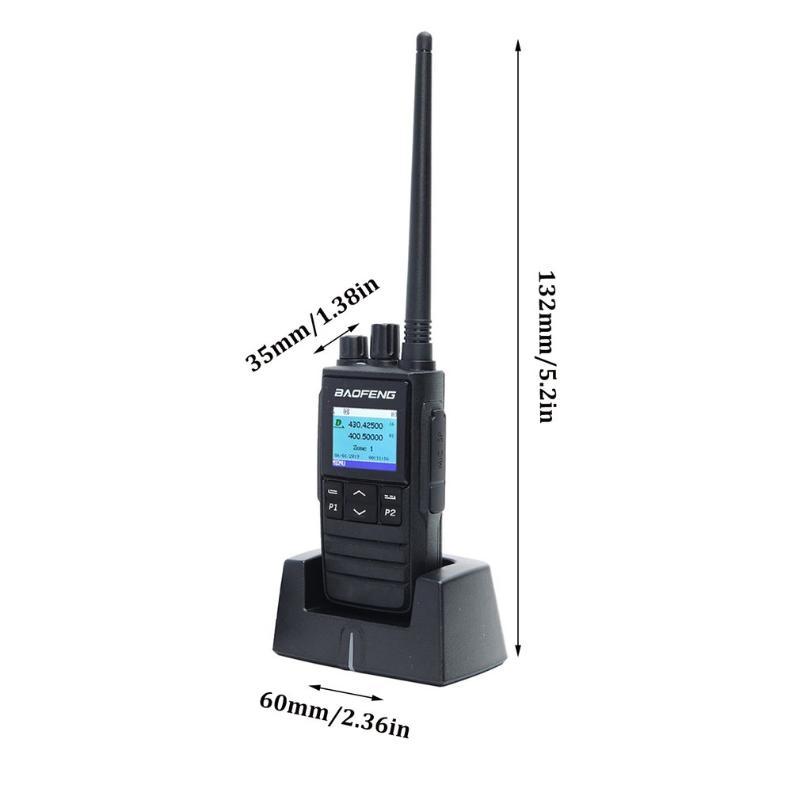

Demission 132*63*36mm (no including the antenna)
Operating environment -30℃-+60℃
Weight Approach.250g(including the battery and antenna)
Transmitter
Output power High:5W Low:1W
Adjacent channel power ≤65dB ≤60dB
Output consumption Analog≤1.6A Digital≤0.9A
Audio response +1~3dB
Standby current consumption ≤0.18A
Digital Protocol ETSI-TS102 361-1,-2,-3
Modulation distortion ≤5%
Vocoder type AMBE+2 TM
FM/FM modulation: 16K¢F3E,25KHz 141K¢F3E,20KHz 11K¢F3E,12.5KHz
4FSK/4FSK digital modulation 12.5KHz for data:7K60FXD 12.5KHz for data and voice:7K60FXE
Signal-to-noise(wide/narrow) ≥45dB,25KHz  ≥40dB,12.5KHz
Antenna Port Spurious 9KHz-1GHz  ≤-36dBm  1GHz-12.75GHz:  ≤-30dBm
Receiver
Analog receive sensitivity -122dBm (12dB SINAD)
Digital receive sensitivity -122dBm (BER≤5%)
Audio power 1W
Audio distortion <10%
Signal imitation ≥70dB
Audio response +1~3dB
Receive current ≤380mA
Intermediation(wide/narrow) ≥62dB/≥58dB
Adjacent channel selectivity ≥65dB/≥60dB
PM noise ≥45dB,25KHz / ≥40dB,12.5KHz

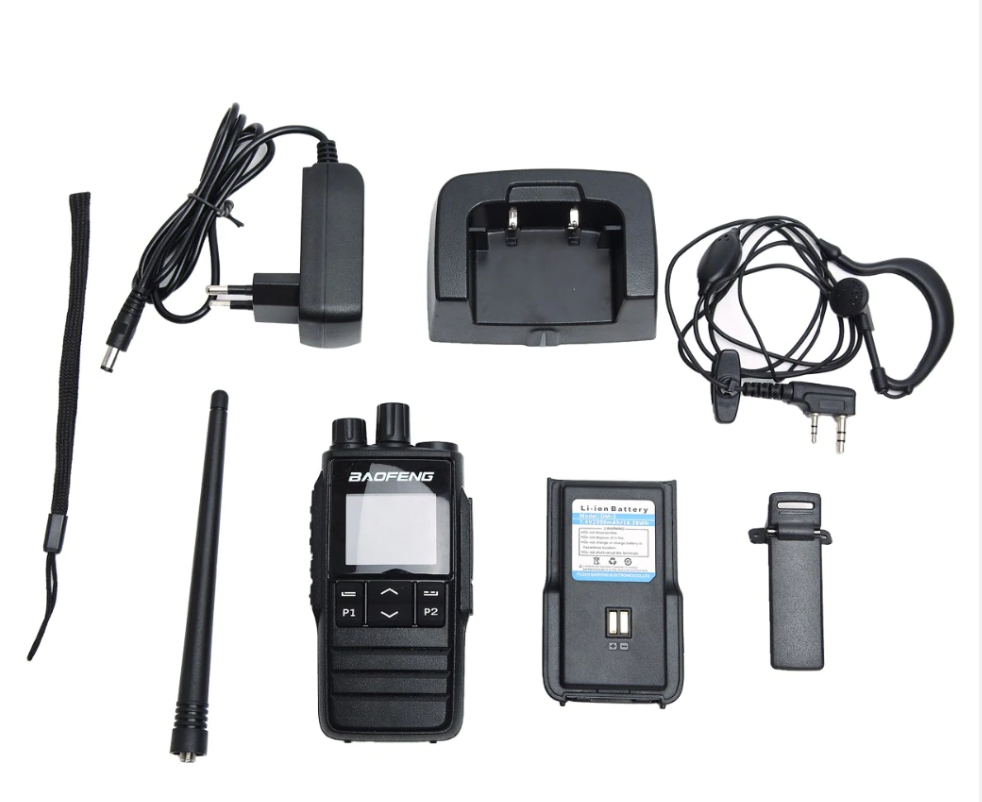

Package Contain:

1× DM1703 Baofeng Dual Band DMR Radios

1× 2200mAh Li-ion Battery Pack

1× Charger Unit with AC Adapter

1× DMR programming cable

1× Antenna

1× Hand Strap

1× Belt Clip

1× Earpiece

1× User Manual
