Description
We bring in TYT TH-9000D Plus VHF, these radios are IC certified
IC Certification ID: 10337A-TH-9000DV
Value COMBO also available!
Description

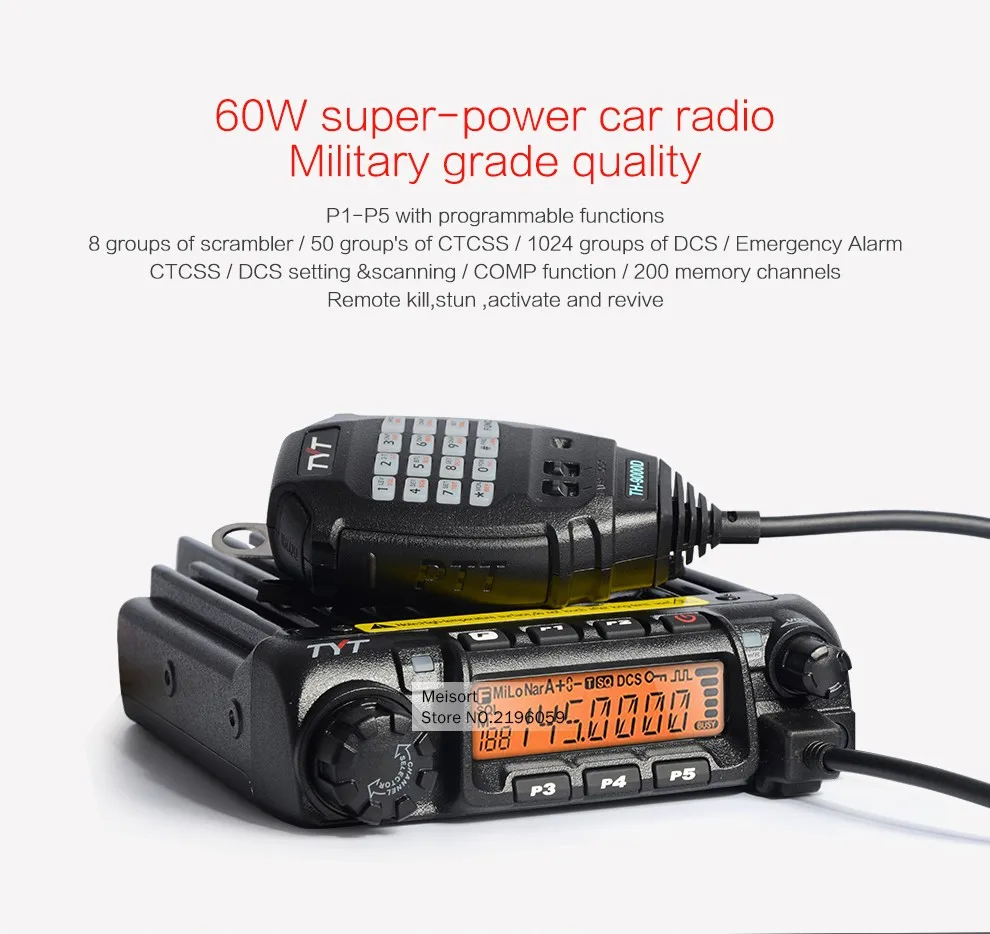

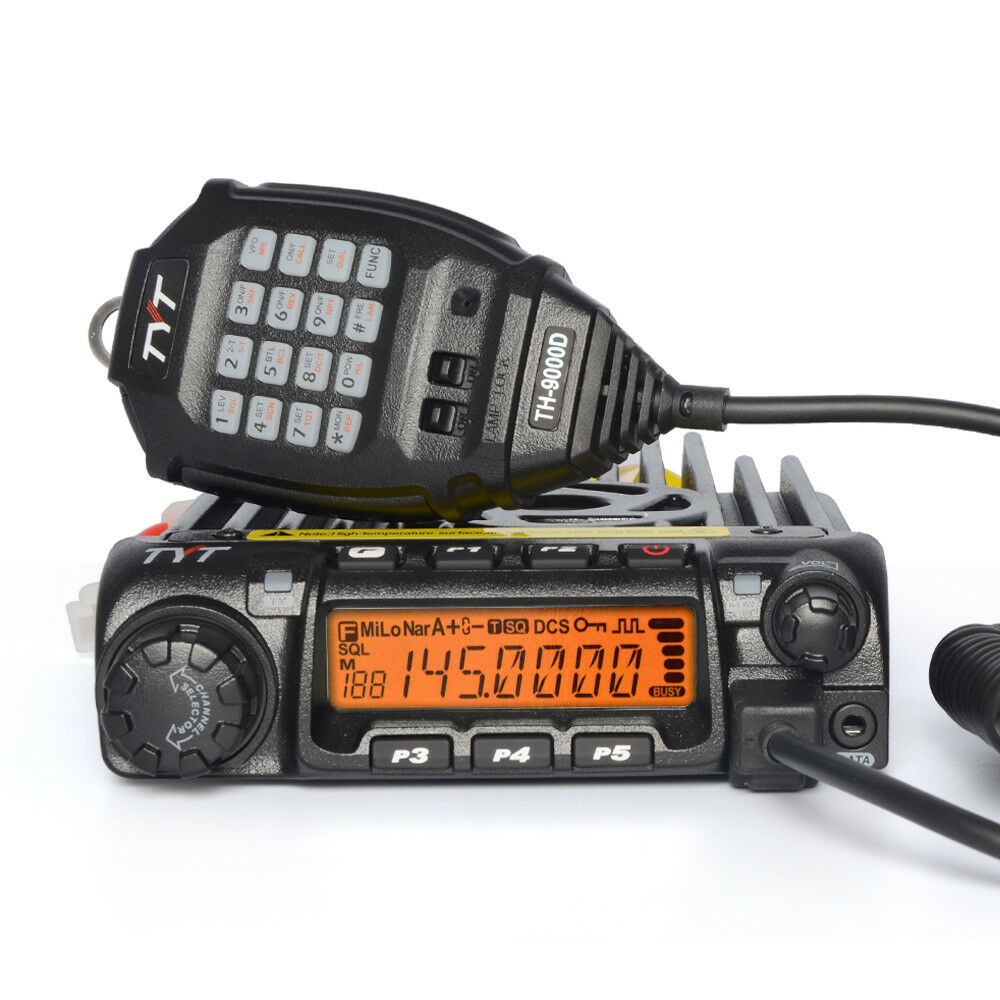

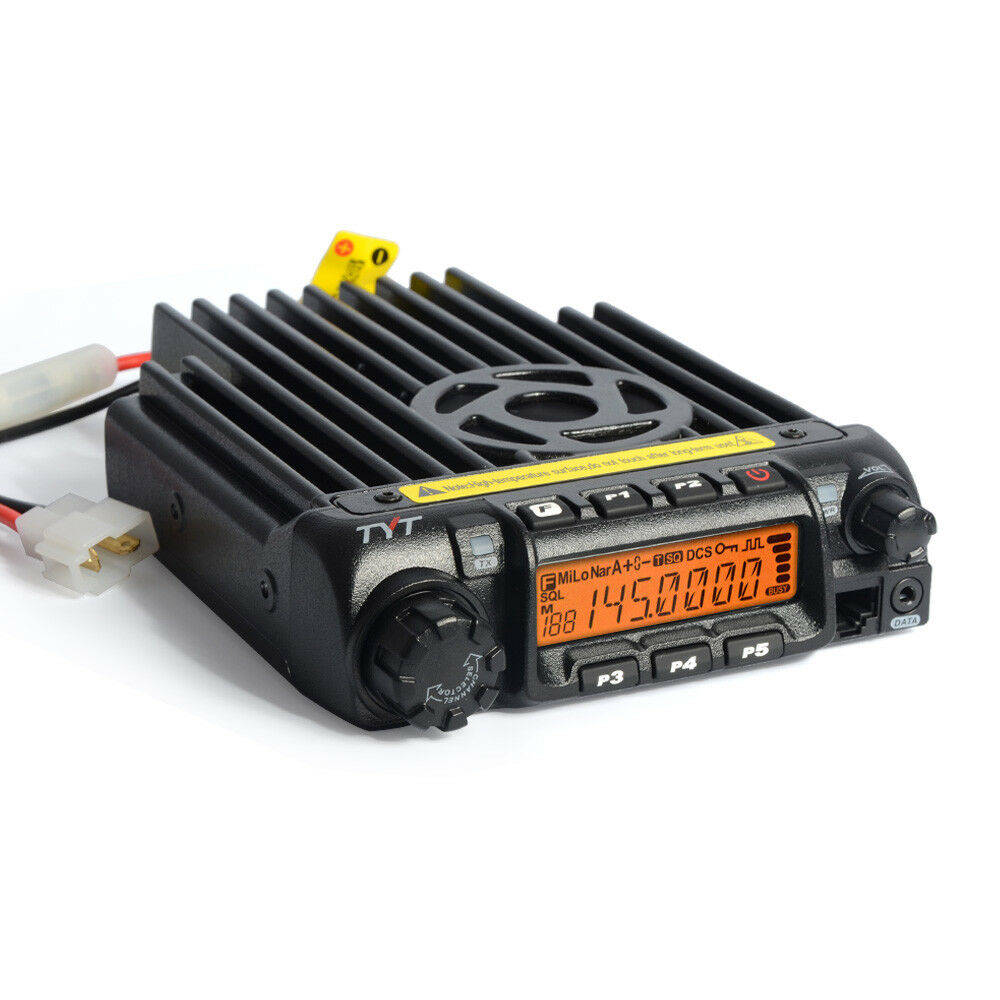

TYT TH-9000D Plus 60W VHF144-148MHz Mini Mobile Radio Transceiver Ham Radio For Bus Taxi Car Truck Radio Communication Two Way Radio

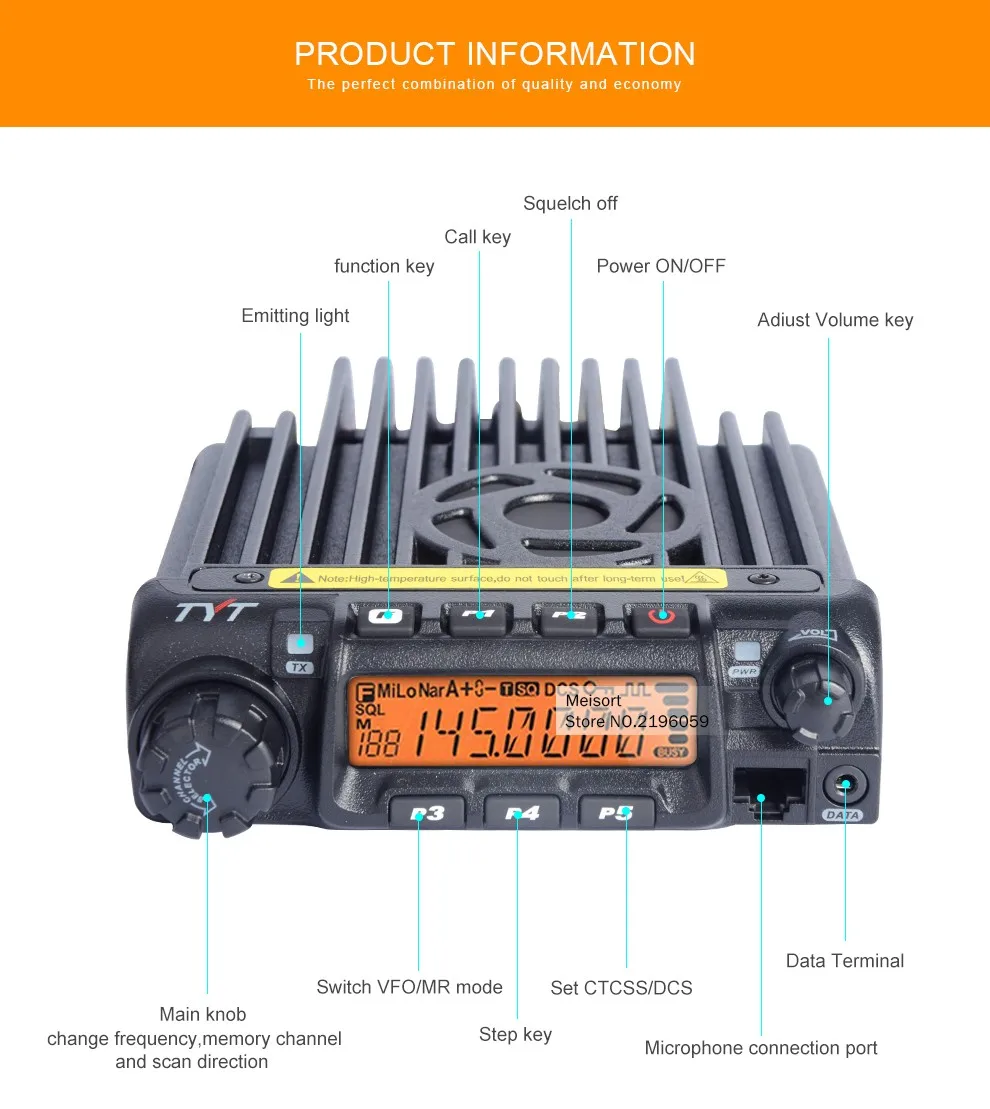

Main Functions:
| Frequency Range: VHF:144-148MHz | |
| Output Power: VHF: 10W/25W/60W |
| * 1750Hz Tone | * CTCSS/DCS setting & scanning |
| * 0-9 SQL grade setting | * Frequency/Channel scanning |
| * High/Mid/Low power selectable | * Voice compander |
| * Repeater offset shift | * Keypad lock function |
| * Contact book | * Battery voltage display |
| * DTMF/2 tone/5 tone | * ANI ID |
| * Remote kill/ stun/ activate/ revive | * Emergenvy alarm |
| * Wide/Narrow band setting | * TX inhibit |
| * Busy Channel Lock-Out | * Channel name editing |
| * Reverse frequency | * Talk around |
| * Scrambler(Optional) | * Voice prompt |
| * Time-out Timer | * Auto Power off |
| * VFO step setting:5/6.25/10/12.5/20/25/50kHz | |
Specifications:
| Item Number | TH-9000D | |
| General | ||
| Frequenvy Range | 144-148MHZ | |
| Channel Capacity | 200 | |
| Channel Spacing | 5/6.25/8.33/10/12.5/15/20/25/30/50KHz | |
| Freruency Stability | 2.5ppm | |
| Operating Temperature | -20°C ~ + 60°C | |
| Operating Voltage | 13.8V DC ± 15% | |
| Dimension(HxWxD) | 145mm x190mm x47mm | |
| Weight(with bracket) | 1200g | |
| Receiver | ||
| Reference Sensitivity | 0.25V / 0.35V | |
| Operating Bandwidth | 60dB#12.5KHz /70dB#25KHz | |
| Adjacent Channel Selectivity | 60dB#12.5KHz 70dB#25KHz | |
| Inter-modulation Rejection | ≥60dB/ ≥65dB | |
| Spurious Response Rejection | ≥70dB | |
| Rated Audio Response | +1-+3dB | |
| Rated Audio Distortion | <5% | |
| FM Hum&Noise | ≥40dB#25KHz /≥45KHz #12.5KHz | |
| Transmitter | ||
| RF Power | 45W/25W/10W(UHF)/60W/25W/10W(VHF) | |
| Frequency Modulation | 11kΦF3E / 16kΦF3E | |
| Modulation Distortion | <5% | |
| FM Noise | ≥36dB#25KHz /≥40KHz #12.5KHz | |
| Adjacent Channel Power | ≥60dB#12.5KHz /≥70KHz #25KHz | |
| Audio Response | +1-+3dB | |
| Audio Distortion | <5% | |

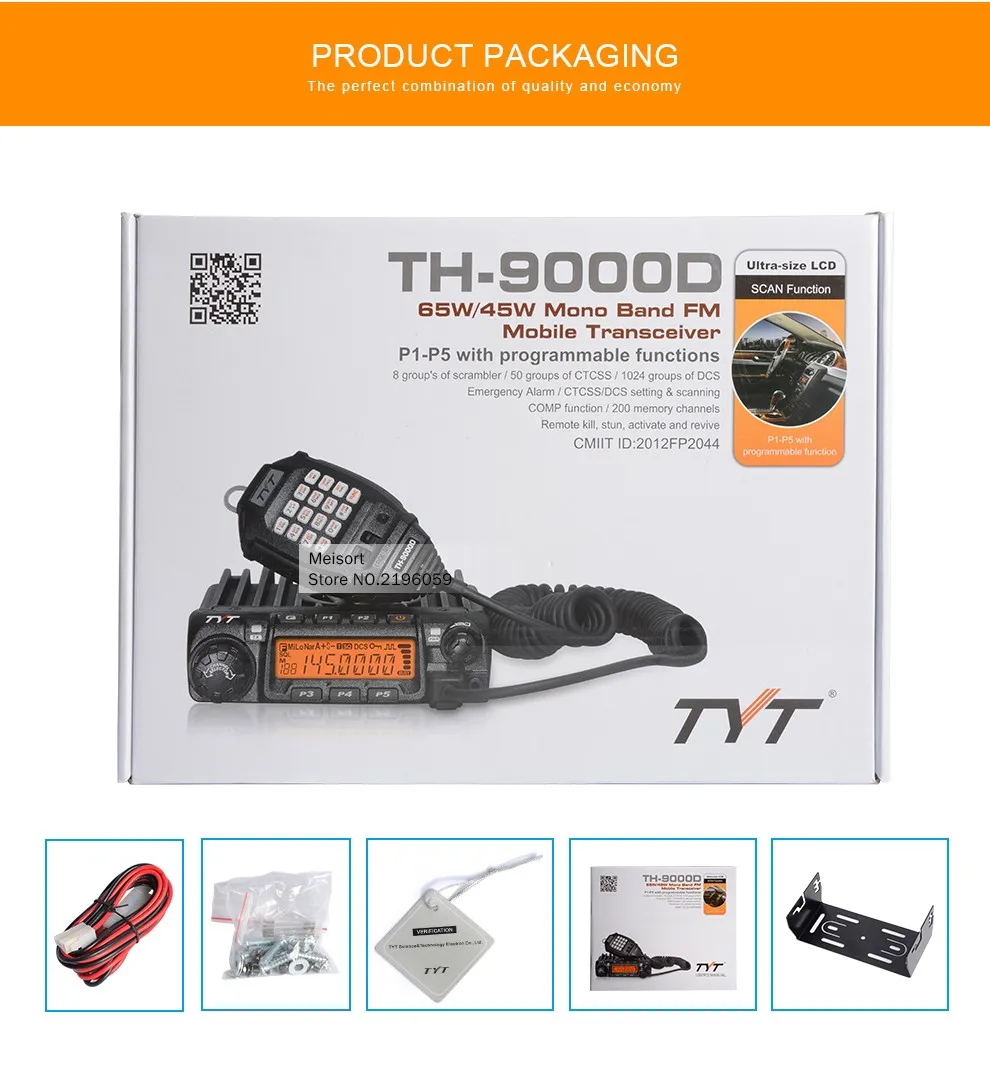

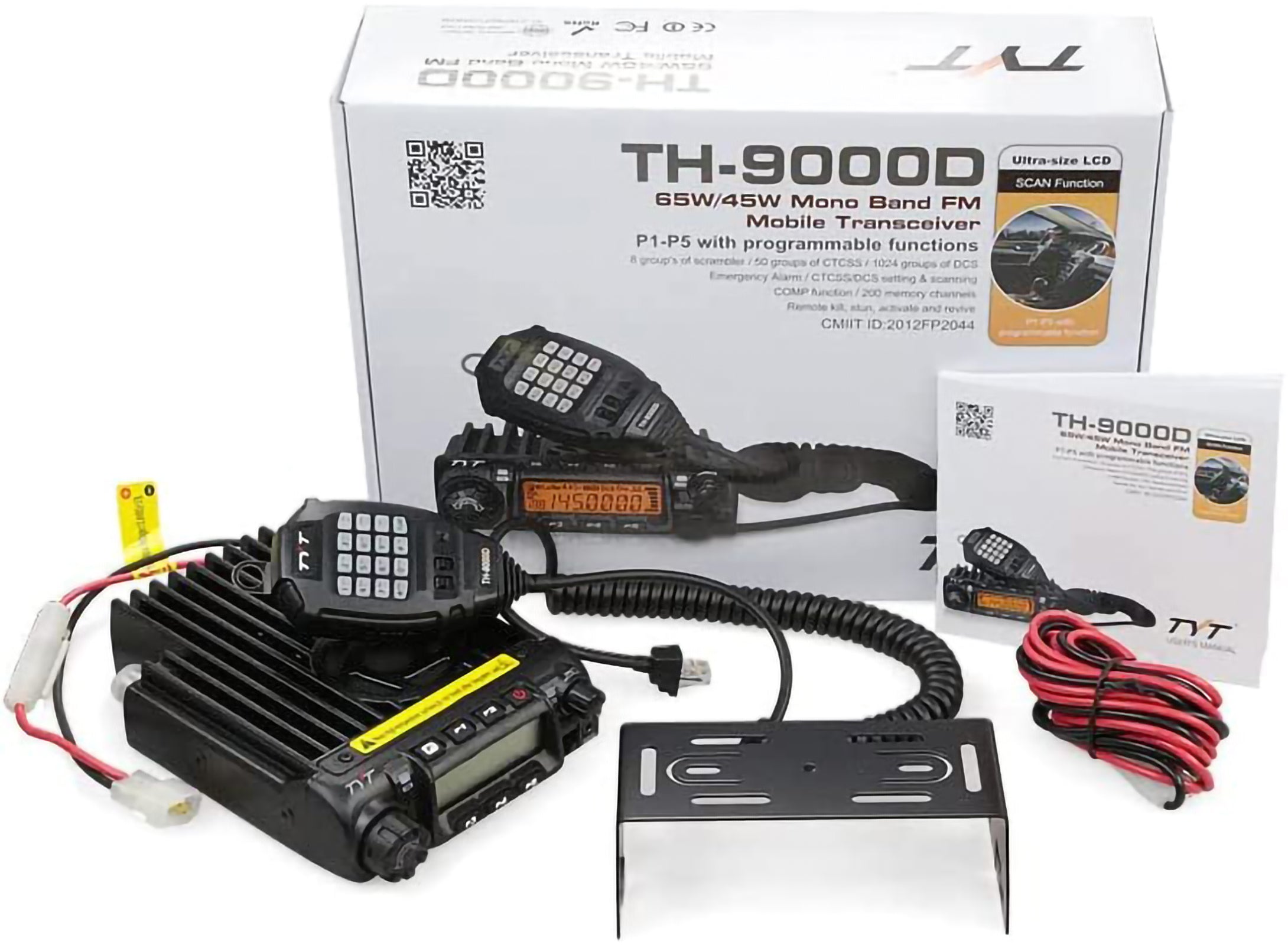

Package includes:

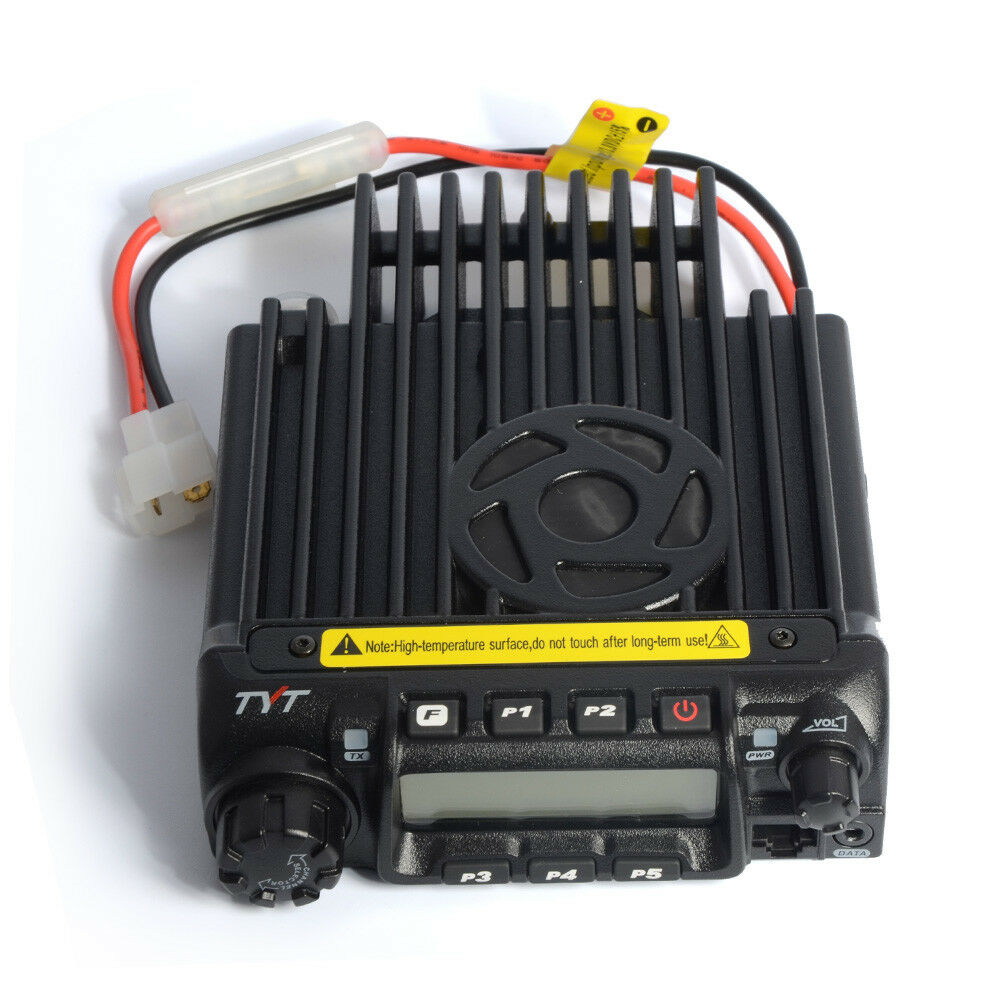

1* TYT TH-9000D VHF Mobile Transceiver

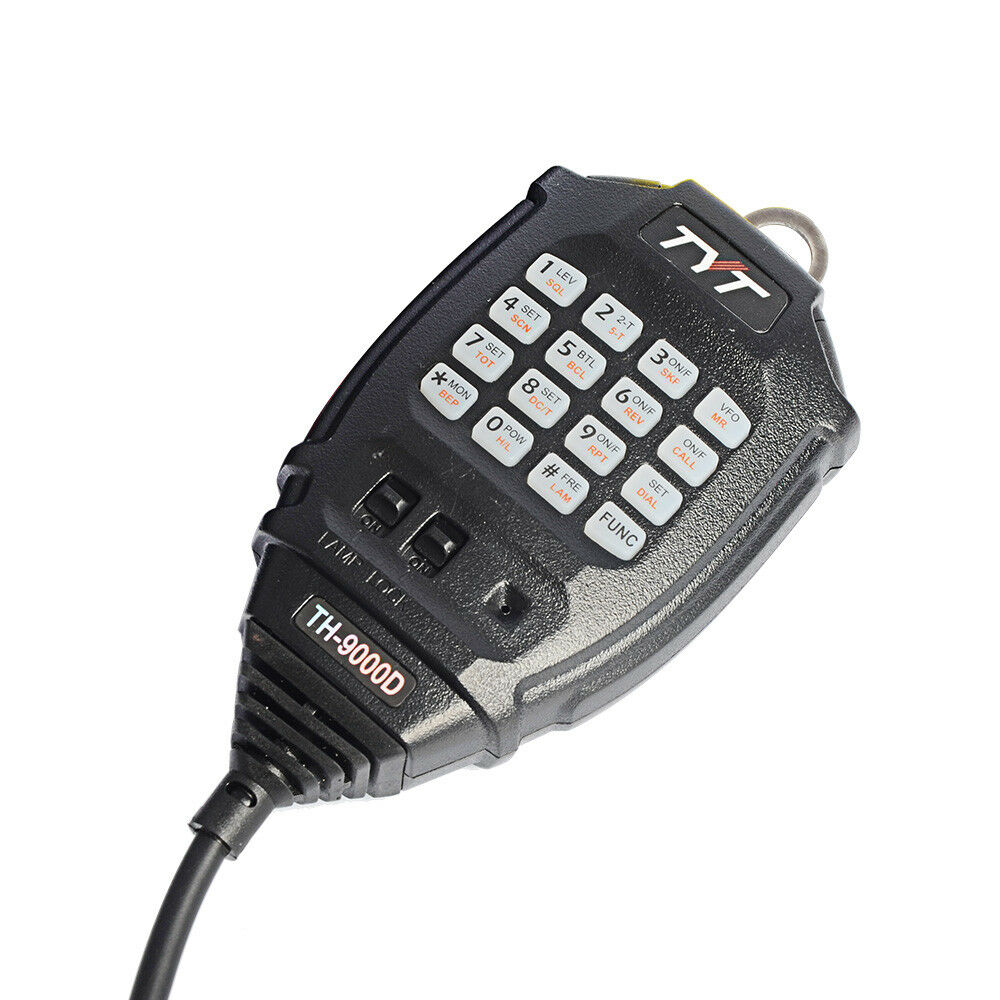

1* Handheld Microphone
1* Power Cable
1* Screws and Accessories
1* User’s Manual
1* Fixed Bracket
