Description
IPX7 Waterproof Construction (1m depth of water for 30 minutes), Full Dot Matrix Display
Dual Receiver, Independent DSC Dedicated Receiver, Dual-watch and Tri-watch Functions

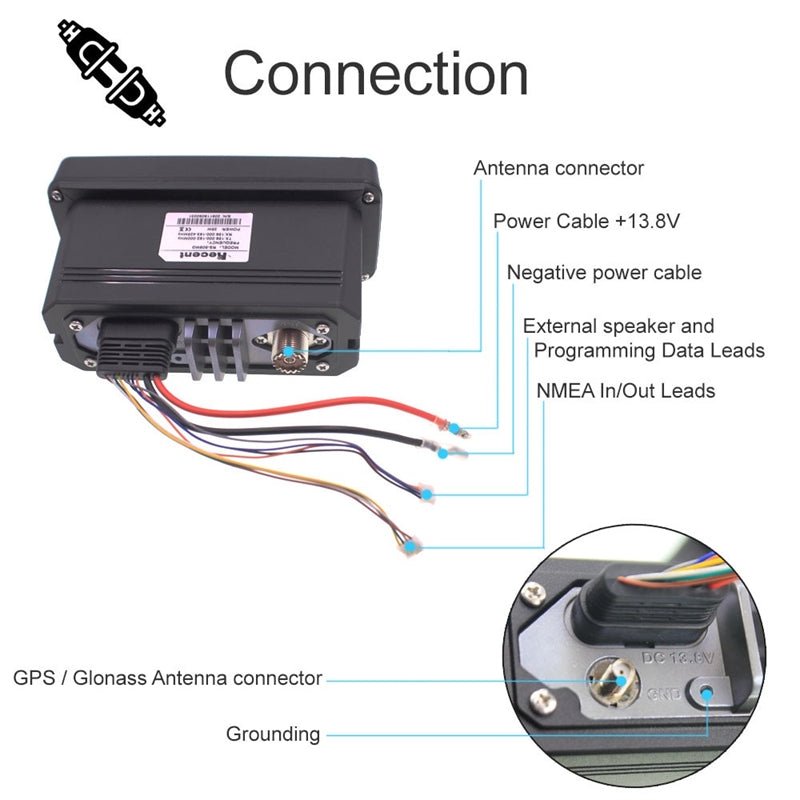

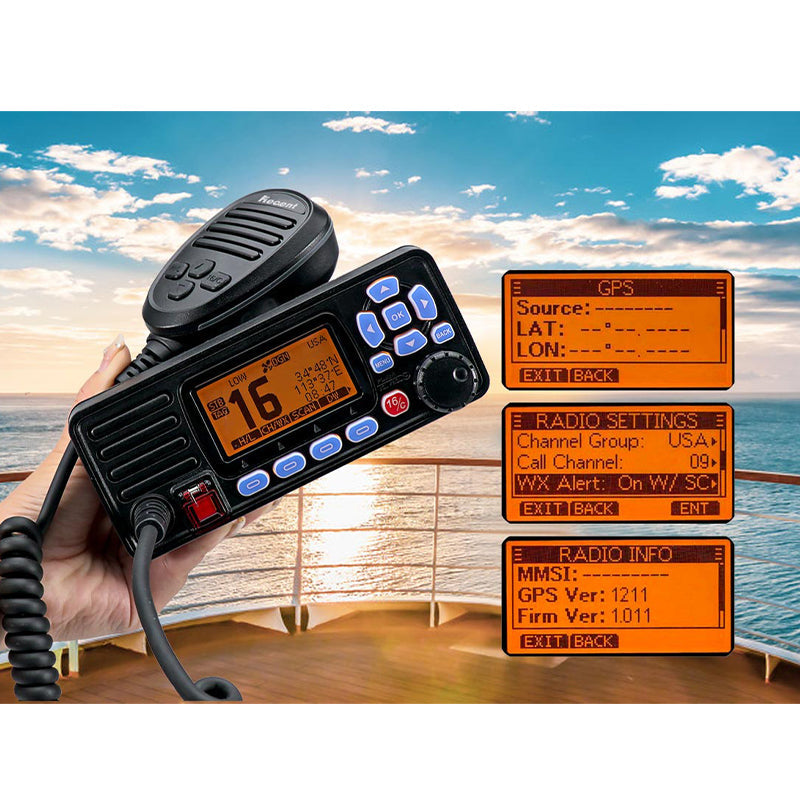

Manually Input GPS Latitude and Longitude and Time, Standard NMEA Interface (RS-422 Protocol)
Speaker Vibration Draining Function, Channel Number Display Digits Selectable
DSC Call Reception and Transmission Records Can be Queried, Weather Channel Alarm

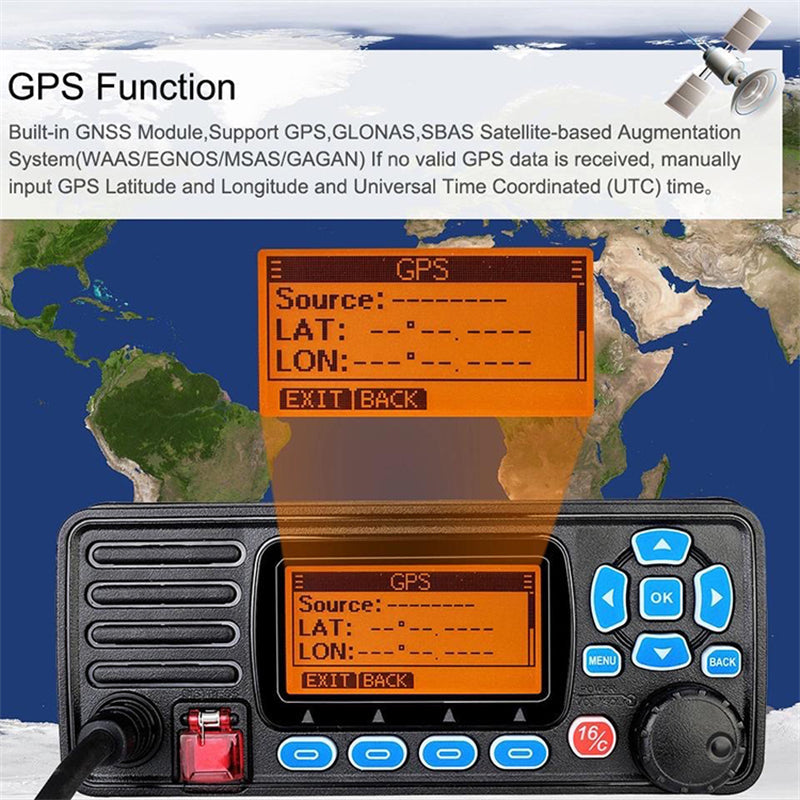

Built-in GNSS Module, Support GPS, GLONAS, SBAS Satellite-based Augmentation System
(WAAS/EGNOS/MSAS/GAGAN), Support Latest Marine Channel and DSC Protocol Standards.
Product size 155(W)×68(H)×86(D)
1. Frequency Range: TX：156.000-162.000MHz RX：156.000-163.425MHz;
2. RF Power: 25W/1W;
3. Channel Group: USA,INT,CAN;
4. Modulation Mode:16K0G3E(FM), 16K0G2B(DSC);
5. Power Supply: DC13.8V (±15%);
6. Frequency Stability: ±5 PPM;
